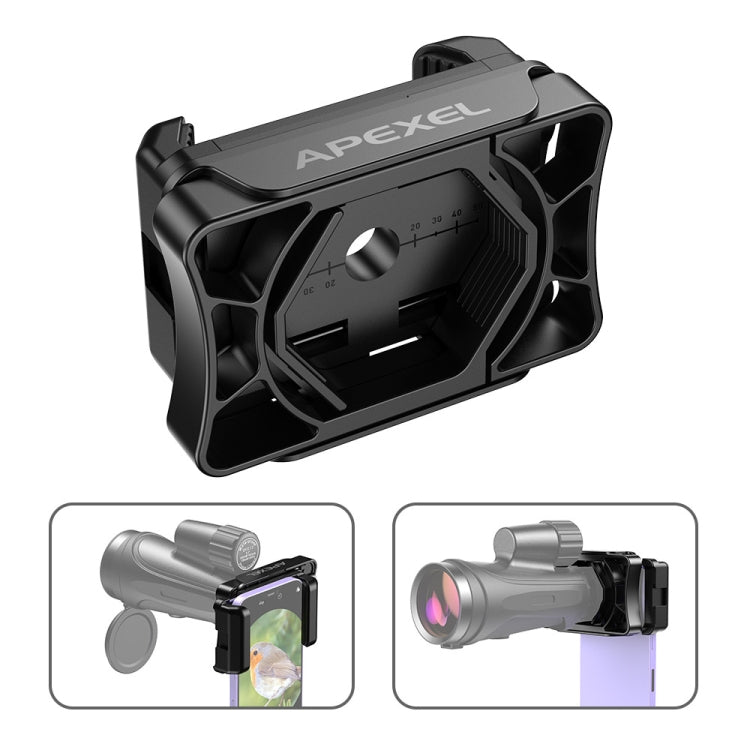

APEXEL APL-F002 Conector Universal para Ocular de Monóculo Duplo para Observação de Aves Acessórios para Telemóvel, APL-F002

1. Material: PA+GF
2. Eyepiece clamping force: 3kg
3. Width of clamping mobile phone: 66-95mm
4. Depth of phone holder: 14mm
5. Function: connect smartphone with telescope, astronomical scope, microscope, bird-watching scope
6. Mounting eyepiece diameter: 23-50mm

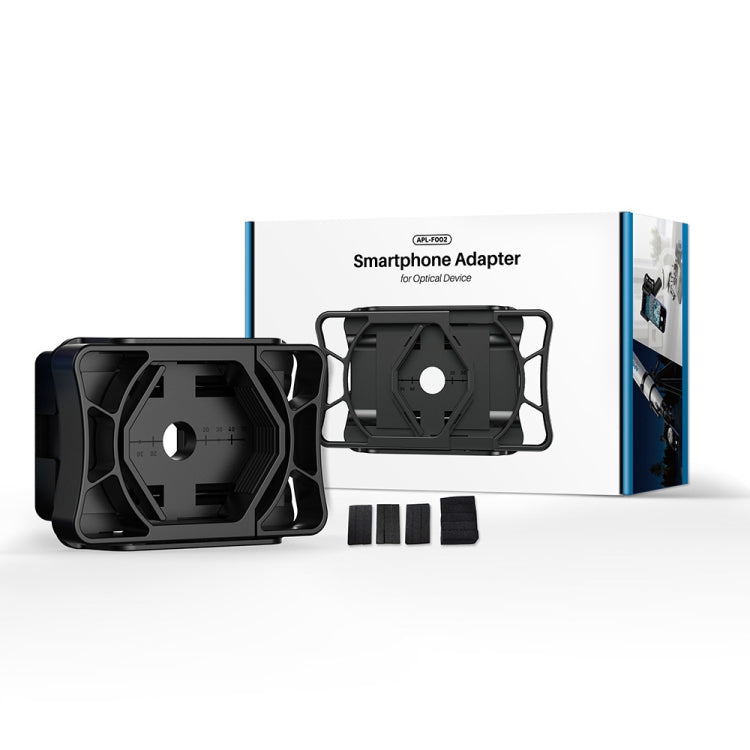

7. Packing list: connector + eyepiece spacer + manual + tension clip spacer + color box
8. Size: 119x67x44.5mm
9. Weight: 102g
10. Note: the product contains connectors only, nothing other

Features:
1. Fully compatible, universal adaptation
2. 3 seconds to install, precise focus
3. One-piece structure, prevent loosening
4. Small and portable, mechanical appearance
5. Built-in rubber pad, key protection
6. Ergonomics, improved grip
7. Double-sided integrated structure, spring press misalignment buckle design, easy to install quickly and adapt to different sizes of eyepiece ends

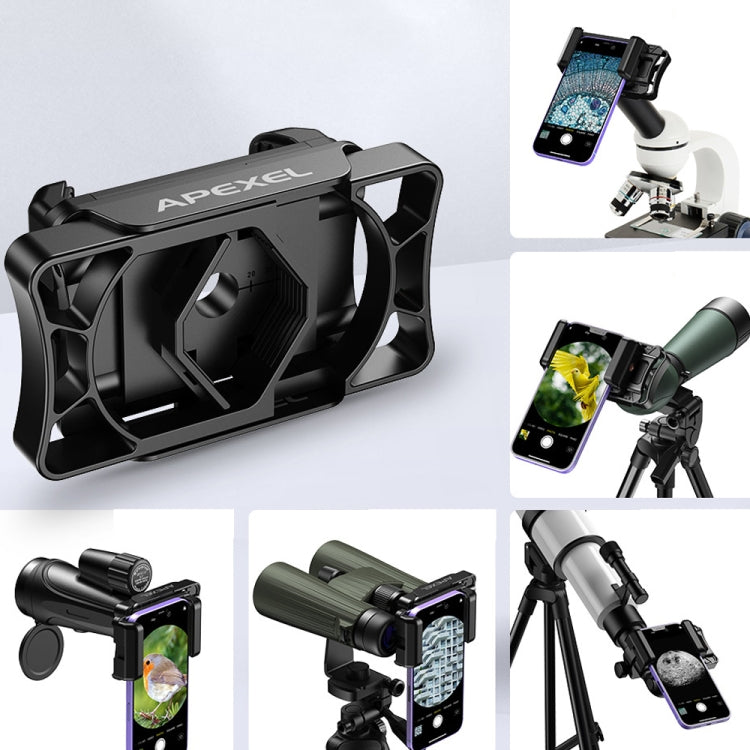

8. Multi-scene application, used for mobile phone to connect to telescope, microscope, bird-watching scope, astronomical scope, etc. for observation, SEHY, horizontal and vertical shooting, free to switch
9. It can be held with one hand, and the curved design on both sides makes it easy to press, easy to use and labor-saving
10. Wide range of applications, precise focus
11. Elastic stretching, quick installation and clamping, support single/dual/multi-camera, multi-lens please align with the main lens

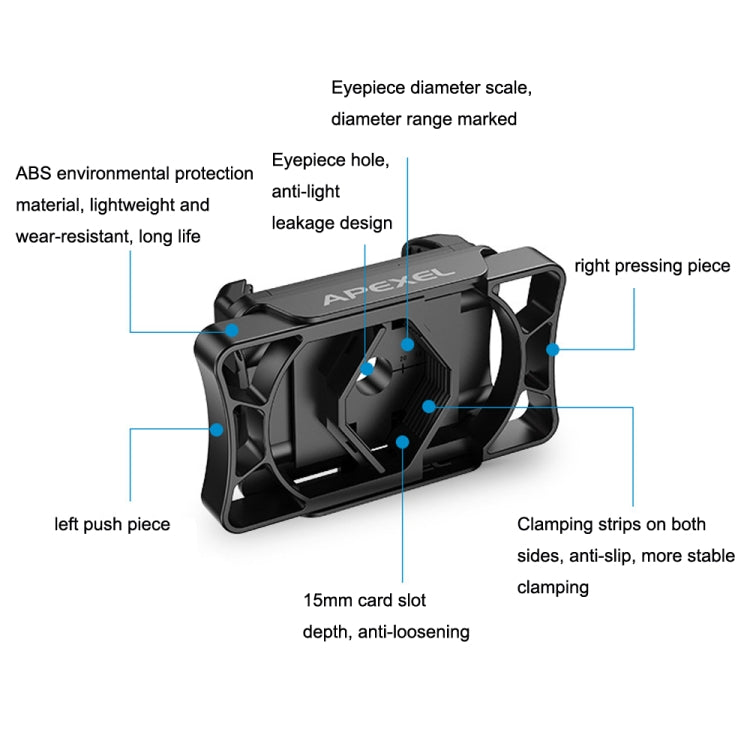

12. ABS environmental protection material, lightweight and wear-resistant, long life
13. Eyepiece hole, anti-light leakage design
14. 15mm card slot depth, anti-loosening
15. Clamping strips on both sides, anti-slip, more stable clamping
16. Rounded corners, comfortable touch, not hurting hands

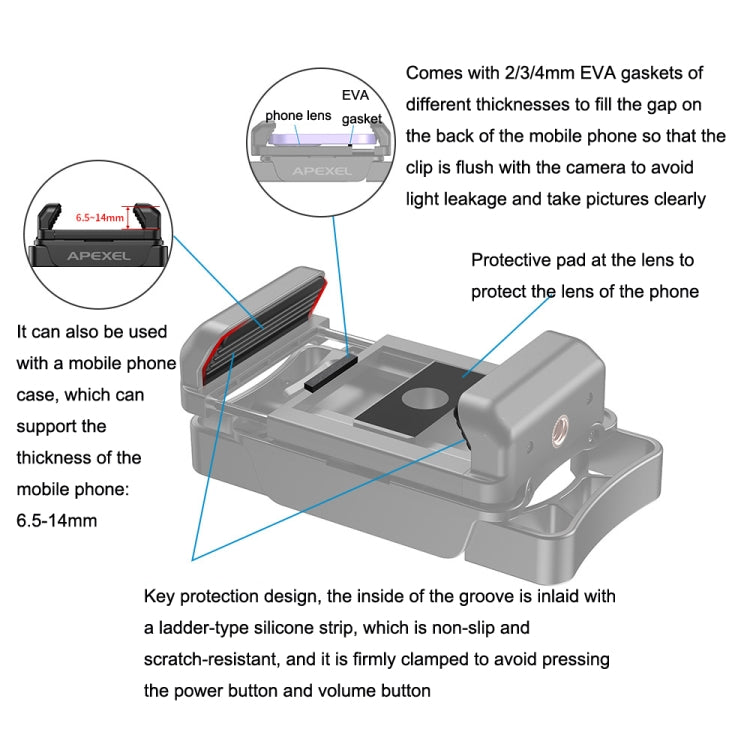

17. Key protection design, the inside of the groove is inlaid with a ladder-type silicone strip, which is non-slip and scratch-resistant, and it is firmly clamped to avoid pressing the power button and volume button
18. Protective pad at the lens to protect the lens of the mobile phone
19. It can also be used with a mobile phone case, which can support the thickness of the mobile phone: 6.5-14mm
20. Comes with 2/3/4mm EVA gaskets of different thicknesses to fill the gap on the back of the mobile phone so that the clip is flush with the camera to avoid light leakage and take pictures clearly

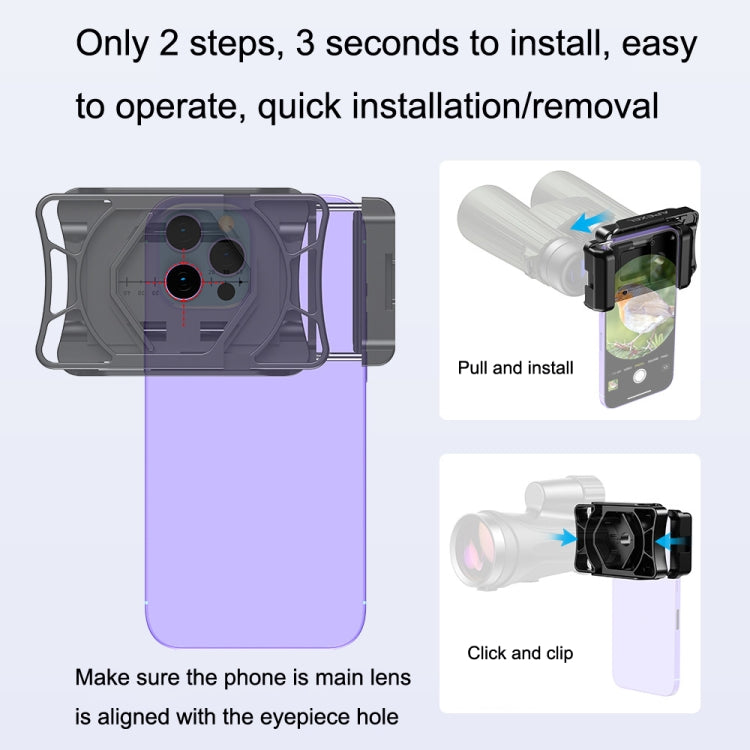

Installation steps:
1. Unfold the stretch clip and insert it into the mobile phone, and slide the adjustment to align the eyepiece hole with the main lens of the mobile phone (reminder: Fold the blindfold telescope and remove the protective skin of the blindfold)
2. At the same time, pinch the left and right pressing parts, open the jaws to the diameter of the eyepiece, and set the card slot on the eyepiece end of the telescope (if the screen is offset, make sure the phone lens is aligned with the hole. After connecting, if the screen needs to be full screen, finger to zoom in slightly)
